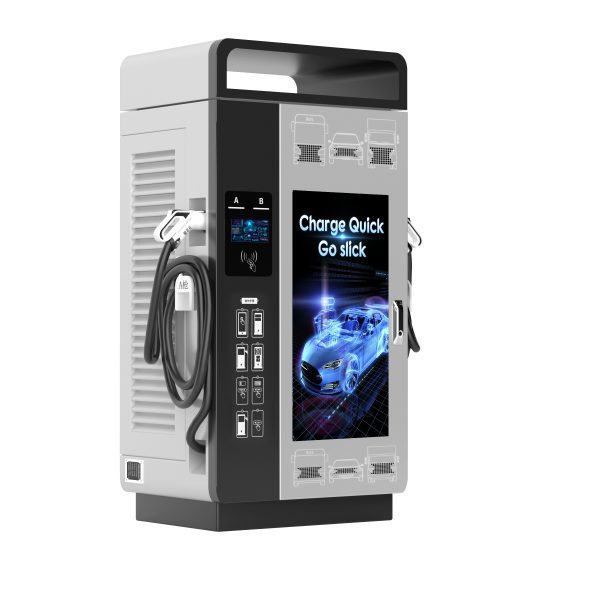

Overview of DC Charger Double Gun
|
Rated Power
|
120 kW/160 kW/180 kW/240 kW/320 kW
|
|
user interface
|
7-inch LCD color display touch screen
|
|
Installation Method
|
Floor Standing
|
|
Cable length
|
5 meters
|
|
Operating temperature
|
-25℃~+50℃
|
|
Operating humidity
|
5% ~ 95% (no frost)
|
|
Working height
|
<3000M
|
|
Protection level
|
IP55
|
|
Cooling method
|
Forced air cooling
|
|
Noise Control
|
≤ 60dB
|
|
MTBF
|
100,000 hours
|
|
Input frequency
|
45-65 Hz
|
|
Output voltage
|
200-1000V
|
|
Single gun output current
|
0-250A
|
|
Measurement accuracy
|
0.5 level
|
|
Current limiting protection value
|
≥ 110%
|
|
Stable voltage accuracy
|
≤ ± 0.5%
|
|
Stable current accuracy
|
≤ ± 1%
|
|
Ripple Factor
|
≤ ± 0.5%
|
|
efficiency
|
≥ 94.5%
|
|
Power Factor
|
≥ 0.99 (over 50% load)
|
|
Harmonic content THD
|
≤ 5% (over 50% load)
|
|
Human Machine Interface
|
7-inch LCD color display touch screen, LED indicator light
|
|
Charging Mode
|
Automatic refill/fixed power/fixed amount/set time
|
|
Communication interface
|
Ethernet 2/3/4G (optional)
|
|
Payment Methods
|
Card payment/QR code payment/credit card
|
|
Implementation Standards
|
CCS1 CCS2 GBT Chademo
|
|
Security Features
|
Charging gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, low temperature protection, insulation monitoring and protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection, surge protection, grounding fault
|
