| Output Power | 7KW | 11KW | 22KW |
|---|---|---|---|
| Model | YLC-AC-7 | YLC-AC-11 | YLC-AC-11 |
| Output Current | 0-16A | 0-32A | 0-32A |
| Input Voltage | Single Phase 220V | Three Phases 380V | Three Phases 380V |
| Breaker | 32A | 16A | 32A |
| Charging Connector Size | 240mm*65mm*65mm | ||
| Host Dimension | 360mm*225mm*100mm | ||

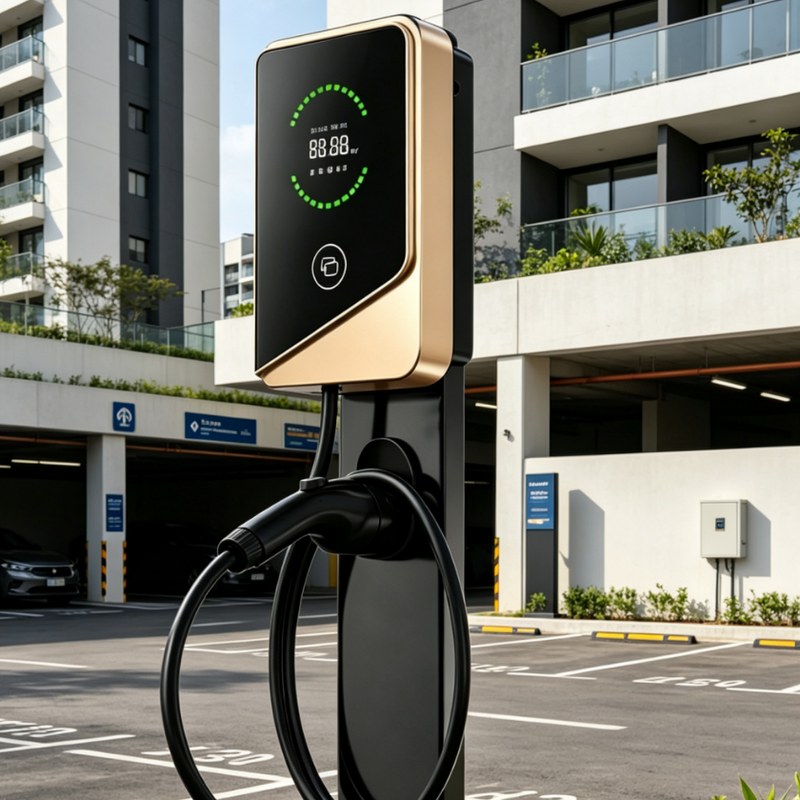

| Installation Mode | Wall-Mounted / Column | ||
| Product Weight | 4.1kg | 4.3kg | 4.5kg |
| MTBF | 100000 hours | ||
| Protection Level | IP55 | ||
| Communication Interface | 4G / Wired Network | ||
| Input Frequency | 50-60Hz | ||
| Power Factor | 0.99 (above 50% load) | ||
| Harmonic | THD:5% (above 50% load) | ||
| Steady Flow Accuracy | <±1% | ||
| Stable Voltage Accuracy | ±0.5% | ||
| Operating Temperature | -35℃~+50℃ | ||
| Storage Temperature | -40℃~+70℃ | ||
| Altitude | ≤2000m | ||
| Relative Humidity | 5%RH ~95%RH | ||
| Noise Control | ≤65 dB@25°C | ||
| Gun Length | 5 Meter | ||
| International Protocol | EN IEC 61851-1 | ||
| Auxiliary Power Source | 12-24V | ||
| Security Features | Input overvoltage protection, undervoltage protection, output overvoltage protection, constant power overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection, insulation detection, door opening protection, battery reverse connection protection, relay sticking protection, etc. | ||
